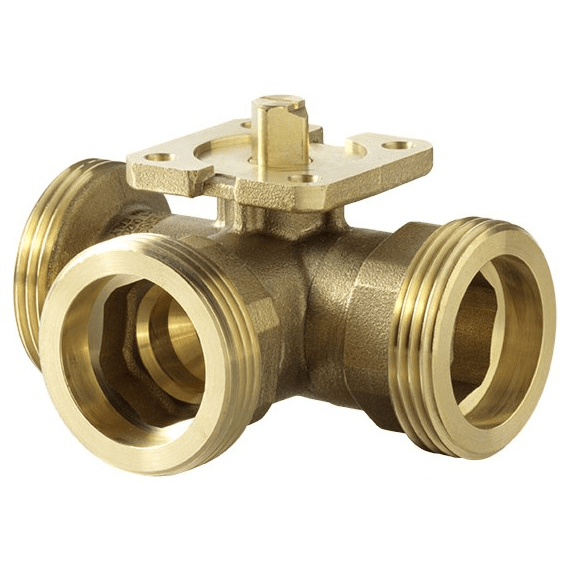

3-way regulating ball valve with male thread, PN 40
Model
BKRA
How energy efficiency is improved
Efficiency means precise control and working with minimum leakage
Features
- 3-way regulating ball valve for continuous control of cold and hot water in closed circuits
- As a control unit in combination with valve actuators AKM105(S), 115(S), 115SA and AKF112, 113(S)
- Control contour in the ball directly integrated
- Control passage characteristic can be set to linear or quadratic with SUT rotary actuator
- Low torque due to collar mounted on O-ring
- Spindle with large sliding surface and PTFE ring
- Ball valve with male thread as per ISO 228-1 (G x” B)
- Body made of DZR (dezincification-resistant) cast brass
- Spindle made of DZR brass with PTFE glide ring
- Ball made of DZR brass, chrome-plated and polished surface
- Spindle seal with double O-ring made of EPDM
- Strainer and screw fitting available as accessories
- Water quality as per VDI 2035
