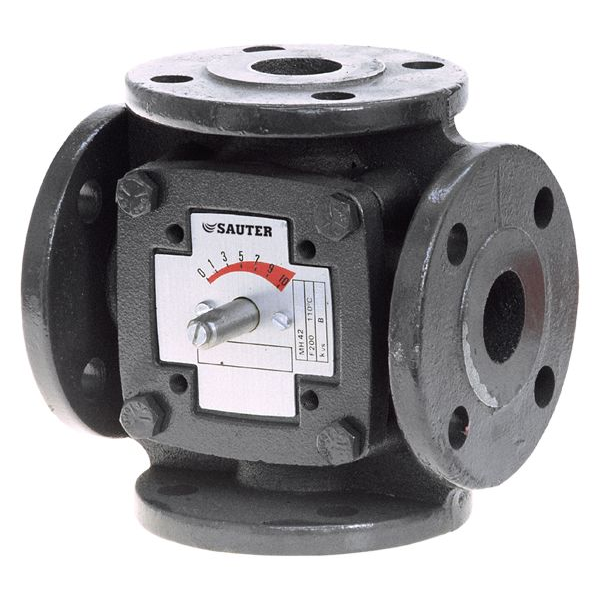

MH32F, MH42F

How energy efficiency is improved

Supply from both sides and the linear characteristic enable energy-efficient working

Areas of use

Continuous control of the supply temperature in heating systems in which a certain loss through leakage is desired.

Features

• MH32F: 3-way valves with nominal diameters DN 20…150
• MH42F: 4-way valves with nominal diameters DN 32…50
• Can be combined with the ADM 322 and ASM 105, 115, 124 motorised actuators
• Manual adjustment via lever
• Body made of grey cast iron; brass gate
• Spindle made of brass up to DN 25 and stainless steel from DN 32
• Stuffing box with double O-ring guarantees the tightness of the seal at the spindle
