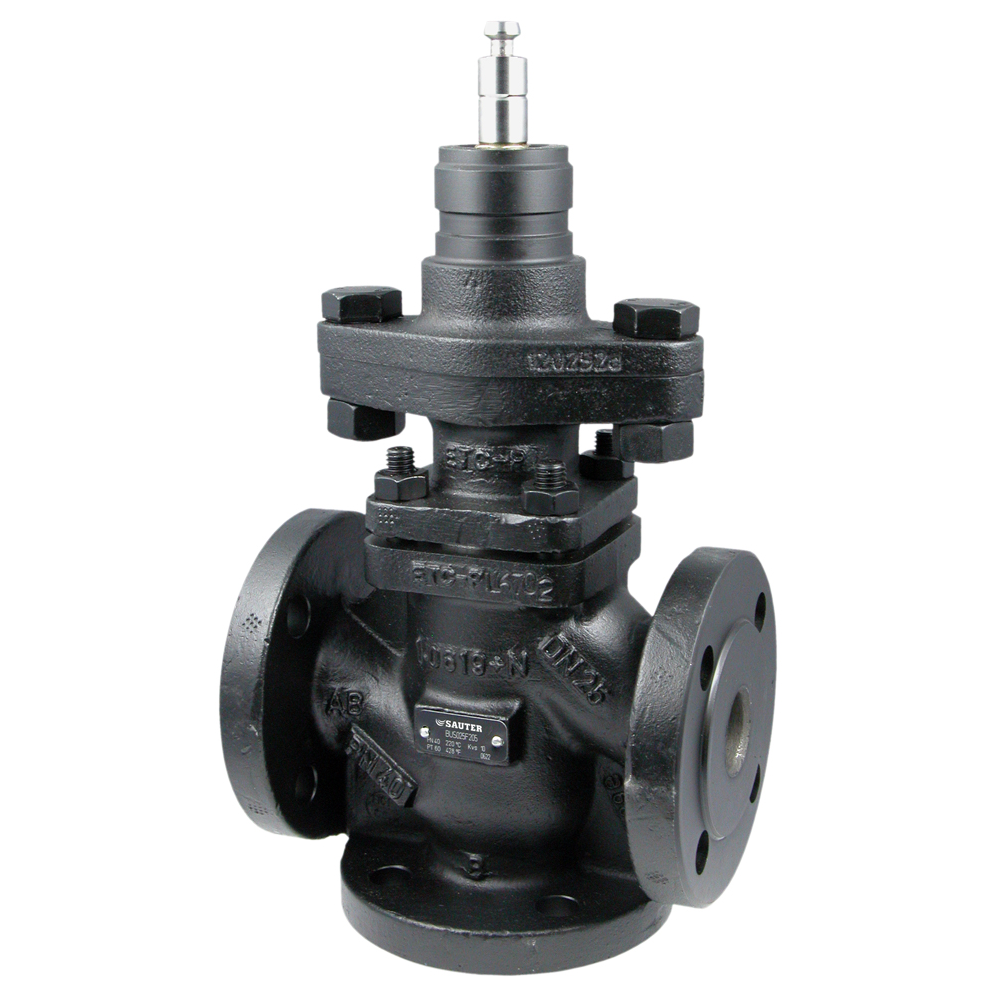

3-way flanged valve, PN 40 (el.)

Model BUS

Efficiency means precise and reliable control

Continuous control of cold/warm/hot water in HVAC installations in closed circuits
In combination with valve actuators AVM 322(S), AVM 234S and AVF 234S as control unit
Water quality as per VDI 2035
Not suitable for drinking water
Valve with flange connection as per EN 1092-2, seal form B
Regulating valve, free of silicone grease, matt black
Control passage, linear characteristic, DN 15…100; adjustable with SUT (SAUTER Universal Technology) valve actuators to equal-percentage
Mixing passage, linear characteristic
The control passage is closed when the spindle is moved out
For use only as a control valve
Valve body made of cast steel
Stainless-steel seat and plug
Stainless-steel spindle
Maintenance-free stuffing box, made of stainless steel, with spring-loaded PTFE washer up to 220 °C, with graphite seal up to 260 °C
