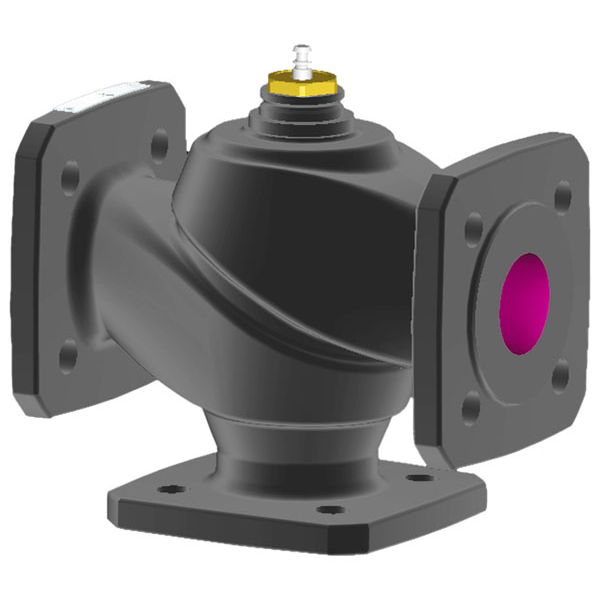

BUE

How energy efficiency is improved

Efficient use in continuous control systems

Features

• Continuous control of cold and hot water in closed circuits
• Water quality as per VDI 2035
• In combination with AVP 242 valve actuators as a control unit
• Not suitable for drinking water
• Valve with flange connection as per EN 1092-2, seal form B, for PN 16 and PN 10
• Regulating valve, free of silicone grease, painted black
• The control passage is closed when the spindle is moved out
• Used as a control valve
• Valve body and seat made of grey cast iron
• Stainless-steel spindle
• Plug made of brass with glass-fibre reinforced PTFE sealing ring
• Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM
