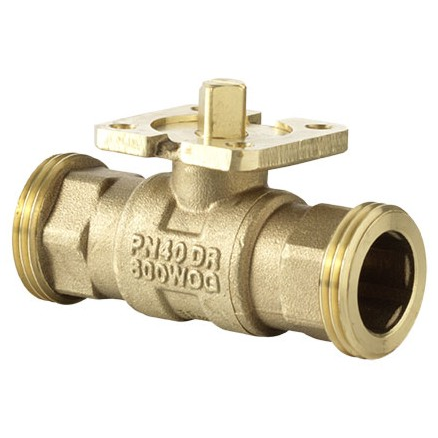

2-way cut-off ball valve with male thread, PN 40
Model
VKAA
How energy efficiency is improved
Precise cut-off with minimum leakage
Features
- 2-way cut-off ball valve for use in closed circuits in heating, ventilation and air conditioning systems
- As a cut-off device and control unit for 2-point control in combination with valve actuators AKM 105(S), 115(S), 115SA and AKF 112, 113(S)
- Fast changeover in six seconds with the AKM115SF152 valve actuator
- Low torque due to collar mounted on O-ring
- Ball valve with male thread as per ISO 228-1 (G x” B)
- Body made of dezincification-resistant cast brass
- Ball made of dezincification-resistant brass, chrome-plated and polished surface
- Strainer and screw fitting available as accessories
- Water quality as per VDI 2035
