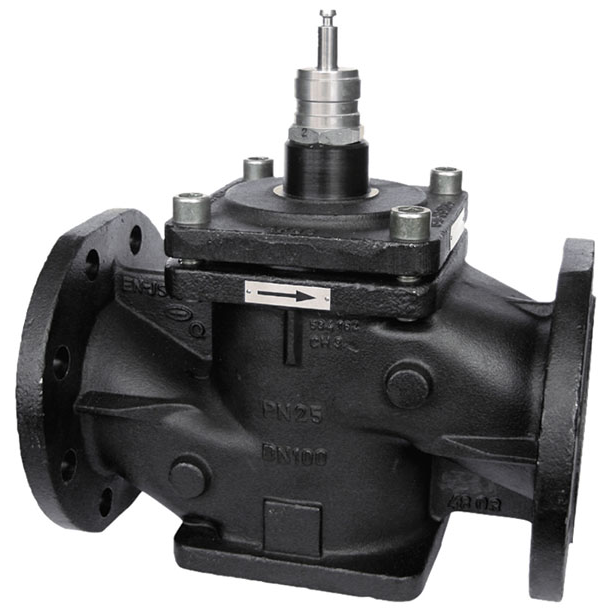

Pressure-relieved 2-way flanged valve, PN 25 (el.)

Model VUP

Efficiency means precise and reliable control

Continuous control of cold and hot water in closed circuits, and of steam
In combination with valve actuators AVM 322(S), AVM 234S, AVF 234S and AVN 224S as a control unit
Water quality as per VDI 2035
Not suitable for drinking water
Valve with flange connection as per EN 1092-2, seal form B
Regulating valve, free of silicone grease, with pressure compensation, galvanised and painted black
Equal-percentage characteristic, can be set with SUT (SAUTER Universal Technology) valve actuators to linear or quadratic
The valve is closed when the spindle is moved in
Valve body made of ductile cast iron
Valve seat, plug and spindle made of stainless steel
Closing procedure only against the pressure
Maintenance-free stuffing box in brass with spring-loaded PTFE-FKM-PTFE washer
