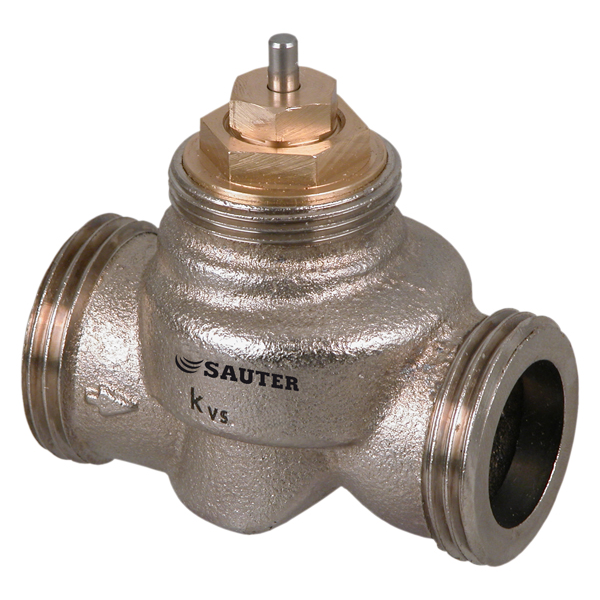

2-way valve, PN 16
Model
VUL
How energy efficiency is improved
Absolutely no losses through leakage. Energy is restrained
Features
- Regulation of heating zones, air secondary-treatment units and fan coil units in combination with AXF 217S, AXM 217(S), AXT 301 or AXS 315S actuators for unit valves
- Flat-sealing standard version or version with clamping ring screw fitting for pipe Ø 15 mm with DN 10
- Valve with male thread as per DIN EN ISO 228-1, class B
- Stuffing box can be replaced under system pressure
- Control passage A–AB is closed when the spindle is moved in
- Closes against the pressure
- Valve body made of nickel-plated cast brass for DN 10 and gunmetal for DN 15 and DN 20
- Plug with EPDM soft seal
- Stainless-steel spindle
- Stuffing box with double O-ring seal
