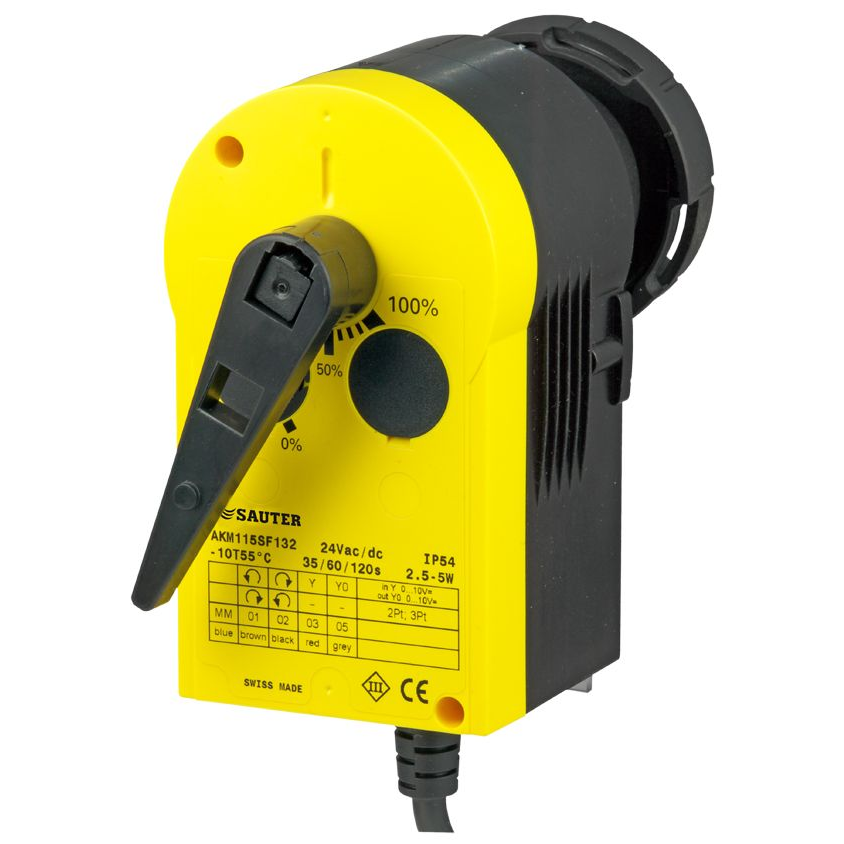

Rotary actuator with SAUTER Universal Technology (SUT) for ball valve

Model AKM 105S, 115S

Automatic adaptation to ball valve, precise activation and high energy efficiency with minimal operating noise.

For operating 2- and 3-way ball valves VKR, VKRA, BKR, BKRA, VKAI, VKAA, BKLI, BKTI, BKTA, (AKM115S) and 6-way ball valve B2KL
For controllers with constant output (0…10 V) or switching output (2-/3-point control)
Assembly with ball valve without the use of tools
Stepping motor with SAUTER Universal Technology (SUT) electronic control unit
Electronic force-dependent motor cut-off
Automatic recognition of applied control signal (continuous or switched)
Coding switch for selection of characteristic and running time (35 s, 60 s, 120 s)
Type of characteristic (linear/quadratic/equal-percentage) can be set on the actuator
Direction of operation can be selected directly on the cable
Maintenance-free gear unit
Gear unit can be disengaged in order to position the ball valve manually (using the lever)
Bracket and bayonet ring made of glass-fibre-reinforced plastic for fitting onto ball valve
