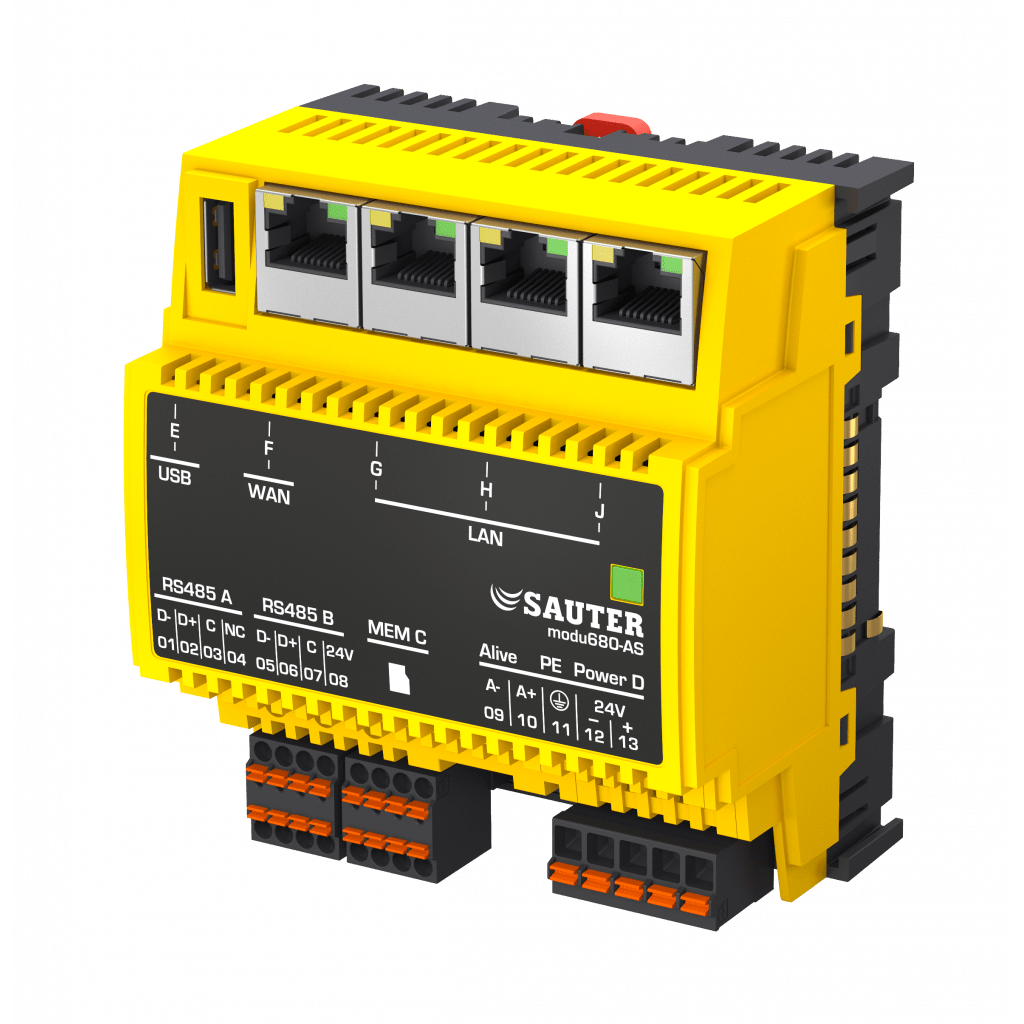

EY6AS80

Features

• Part of the SAUTER modulo 6 system family
• Modular automation station, expandable with I/O modules and communication modules
• Regulation, control, monitoring and optimisation of operational systems in HVAC engineering
• Locally expandable with up to 24 modules via the SAUTER Extension Bus
• Can be locally equipped with ecoLink I/O modules and ASV actuators via SLC interface
• RS-485 interface for field bus integration (Modbus/RTU/ASCII)
• Four RJ45 connections for two separate IP networks (OT/IT; Operational/Information Technology). Three connections switched for daisy chain
• BACnet device profile B-BC (EN ISO 16484‑5)
• AMEV AS-B profile
• Other communication options:

  • BACnet/SC (encrypted communication)

  • MQTT interface (MQTT Broker/Client)
  • REST API interface
• Integrated web server for local commissioning, visualisation and operation
• User administration for identification, authentication and access control
• Encryption of communication with TLS
• Bluetooth interface for mobile commissioning and maintenance
• Programming/parameterisation via PC using CASE Suite (based on IEC 61131-3)
• Control libraries
• Time and calendar function
• Predictive control based on meteorological forecast data
• Data recording on removable media (microSD card)
• User administration and user identification (web server)
• Alive signal output pulsed
