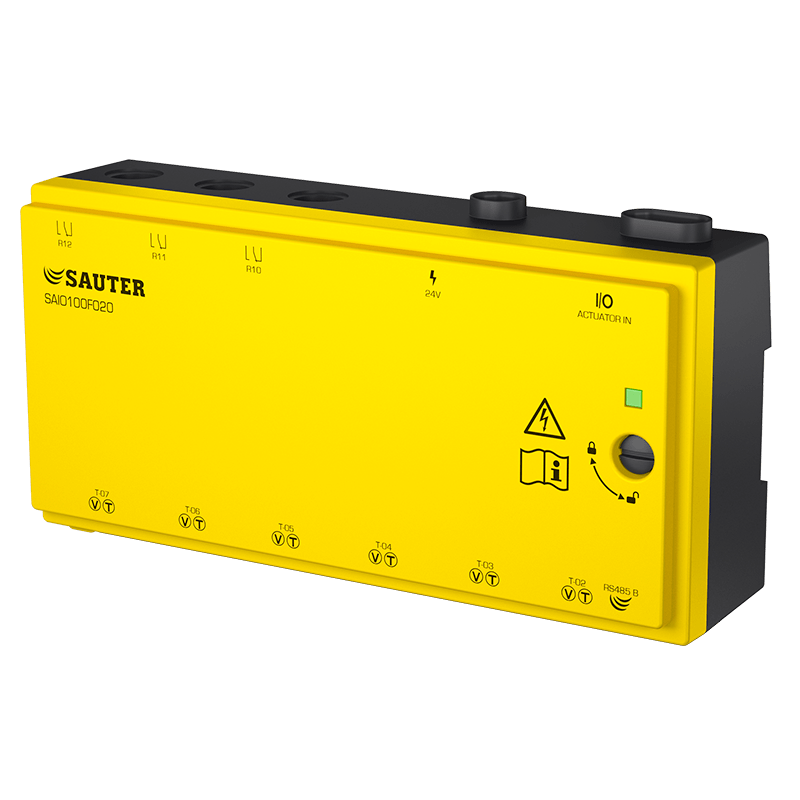

I/O module for smart actuators
Model
SAIO 100
How energy efficiency is improved
Extension of the scope of the smart actuator. Less wiring effort and thus lower fire load
Features
- Extends the inputs and outputs of the smart actuator for extensive control tasks
- Connection of sensors or actuators via five integrated universal inputs and outputs
- Version with three additional changeover relays available
- Connection to the smart actuator via plug-in I/O module cable (SLC)
- Direct connection of a room operating unit
- Housing according to IP54 enables use without cabinet
- Separate 24 V power supply for sensors and actuators with power requirement up to 1 A
