FCCP 200

How energy efficiency is improved

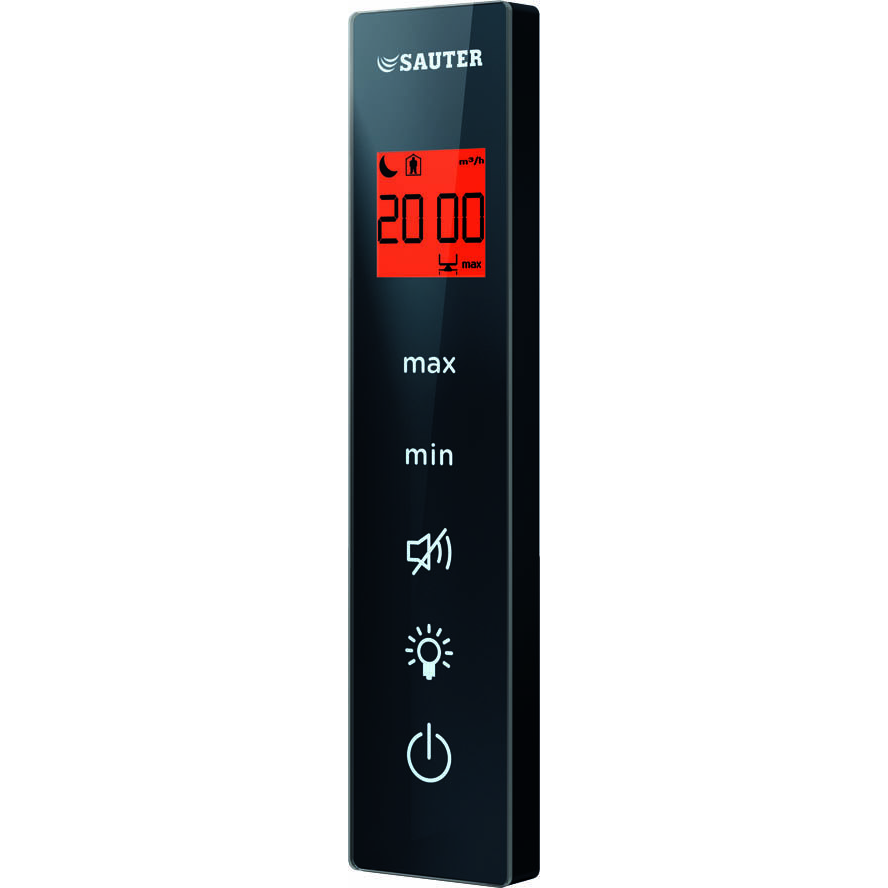

Display and interface for safe, energy-efficient monitoring of fume cupboards, pressure zones and other ambient conditions with an attractive design and state-of-the-art technology

Features

• Measured value display and indication of operating statuses for a range of ambient conditions such as pressure, temperature, relative humidity etc. in combination with an EY‑RC 504/505 room automation station or an ASV 2*5 VAV compact controller
• Monitoring fume cupboards as per EN 14175‑2 to check that they are functioning correctly and that the ventilation is operated to provide maximum safety for the laboratory staff

  • Indication when the front sash is open > 500 mm

  • Switching the fume cupboard lighting on and off
  • Up to two function indicators for double-sided fume cupboards
  • Indication of day/night change-over
  • Audible alarm can be delayed or muted via configuration
• Demand-controlled regulation of fume cupboards as per EN 14175‑6 in combination with the ASV 2*5 VAV compact controller
• Function indicator with visual and audible notification as per EN 14175‑2
• Storage of all defined parameters with protection from power failure
• Interface for easy configuration of the connected VAV ASV 2*5
• Five freely configurable push-buttons
• Chemical-resistance glass surface
• Units that can be displayed: m/s, fps, l/s, m3/h, cfm, Pa, °C, °F, %rh, ppm
