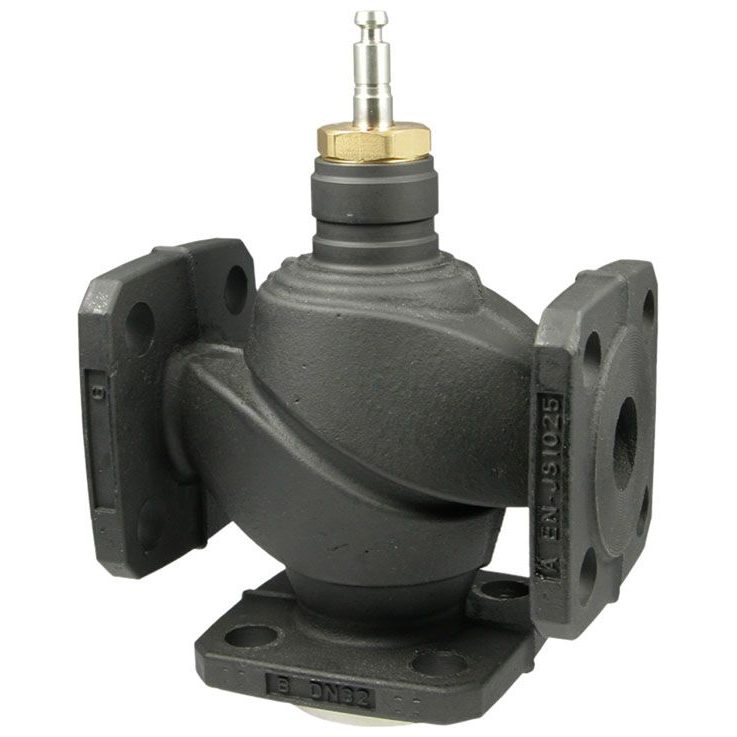

3-way flanged valve, PN 25/16 (pn.)
Model
BUG
How energy efficiency is improved
Efficiency means precise and reliable control
Features
- Continuous control of cold and hot water in closed circuits
- In combination with pneumatic actuators AVP242, AVP243 and AVP244
- Water quality as per VDI 2035
- Valve with flange connection as per EN 1092-2, seal form B
- Nominal pressure 25 bar, except BUG065F316, nominal pressure 16 bar
- Regulating valve, free of silicone grease, painted black
- The control passage is closed when the spindle is moved out
- Used as a control valve
- Valve body made of ductile cast iron
- Stainless-steel seat and spindle
- Plugs of nominal diameter DN 15…50 made of stainless steel with glass-fibre-reinforced PTFE sealing ring
- Plugs of nominal diameter DN 65…150 made of stainless steel with metal-to-metal seal
- Maintenance-free stuffing box in brass with spring-loaded PTFE washer
