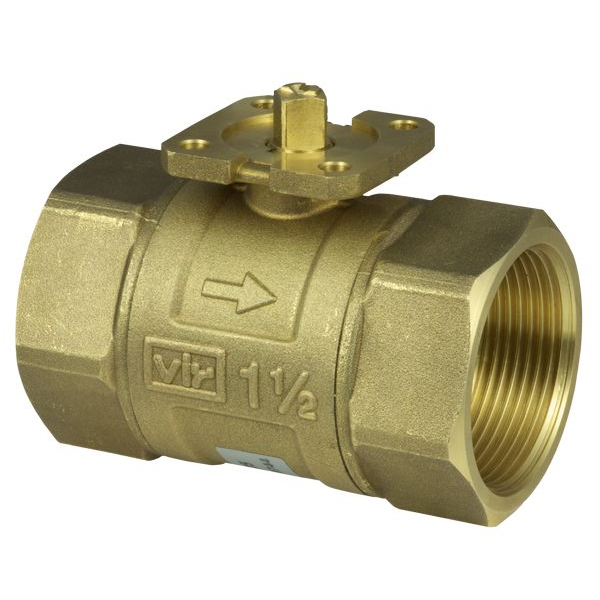

2-way regulating ball valve with female thread, PN 40

Model VKR

Efficiency means precise control and working with minimum leakage

2-way regulating ball valve for continuous control of cold and hot water in closed circuits
In combination with valve actuators AKM 105(S), 115(S), 115SA and AKF 112, 113(S) as a control unit
Equal-percentage ball valve characteristic; control contour in the ball directly integrated
Characteristic can be set with SUT rotary actuator (SAUTER Universal Technology) to linear or quadratic
Spindle with large sliding surface and PTFE glide ring
Low torque due to collar mounted on O-ring
Ball valve with female thread as per ISO 7/1 Rp or NPT
Body made of DZR (dezincification-resistant) cast brass
Spindle made of DZR brass with PTFE glide ring
Ball made of DZR brass, chrome-plated and polished surface
Spindle seal with double O-ring made of EPDM
Strainer and screw fitting available as accessories
Water quality as per VDI 2035
